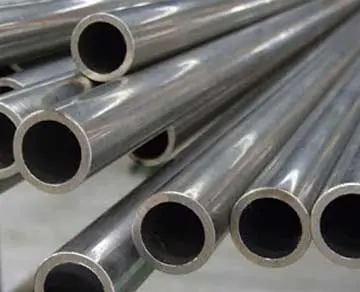

Hastelloy C-276 Seamless Pipe: Wet Chlorine Corrosion Resistant, Premier Choice for Chemical Pipelines
Overview
Hastelloy C276 is a nickel-based alloy composed of nickel, molybdenum, and chromium, with a small amount of tungsten. This blended formula is intended to withstand some of the most extreme situations one can have. This special formula is manufactured to provide excellent resistance to pitting, crevice corrosion, and stress corrosion cracking in both oxidizing and reducing environments. The pipes and tubes we provide get externally tested, whereas internally they are designed for durability, reliability and ultimately long-term performance. Simply put: they’re made to handle the extreme.
Hastelloy C276 welded pipes have excellent corrosion resistance and are used widely in less severe corrosive environments, however still corrosive. These pipes are made from sheets or strips of alloy that are welded together and may also be made into larger diameters or longer length single pieces than a seamless pipe. One advantage of welded pipes is that they tend to be less expensive than the seamless pipes and can be utilized effectively in low environmental internal pressure and mechanical stress situations.

Hastelloy C276 Specification
| Specifications | ASTM B 622 ASME SB 622 / ASTM B 619 ASME SB 619 |
| Dimensions | ASME, ASTM, and API |
| Size | 15″NB upto 150″NB IN |
| Specialized in | Sizes in Large Diameter |
| Type | ERW / Seamless / Welded / LSAW Pipes / Fabricated |
| Form | Hydraulic, Round, Etc |
| Length | Double Random, Single Random, & Cut Length. |
| End | Beveled End, Plain End, Treaded |
Hastelloy C276 Chemical Composition
| Alloy C276 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
| Balance | 0.010 max | 15.00 – 17.00 | 1.00 max | 0.08 max | 4.00 – 7.00 | 0.04 max | 0.03 max | 2.5 max | 14.50 – 16.50 |
Hastelloy C276 Material Properties
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 52,000 , MPa – 355 | Psi – 1,15,000 , MPa – 790 | 40% |
Hastelloy C276 Equivalent Material
| UNS | EN | WERKSTOFF NR. (WNR) | AFNOR | JIS | BS | GOST |
| N10276 | NiMo16Cr15W | 2.4819 | – | NW 0276 | – | ХН65МВУ |
C276 Hastelloy Pipe Sizes
| Types | Outer diameter | Wall thickness | Length |
| NB Sizes (in stock) | 1/8" ~ 8" | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 | Upto 6 Meters |
| Hastelloy C276 Welded Pipe (in Stock + Customized Sizes) | 5.0mm ~ 1219.2mm | 1.0 ~ 15.0 millimetre | Upto 6 Meters |
| Hastelloy C276 Seamless Pipe (Customized Sizes) | 5.0mm ~ 203.2mm | As per requirement | Upto 6 Meters |

FAQ:
