Marine Grade 303 Stainless Steel Flat Bar - Resists Seawater Corrosion

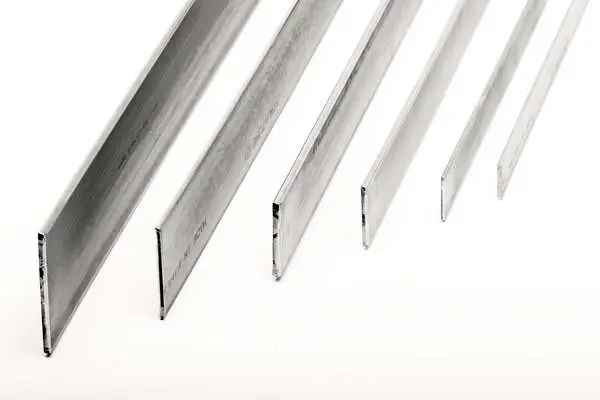

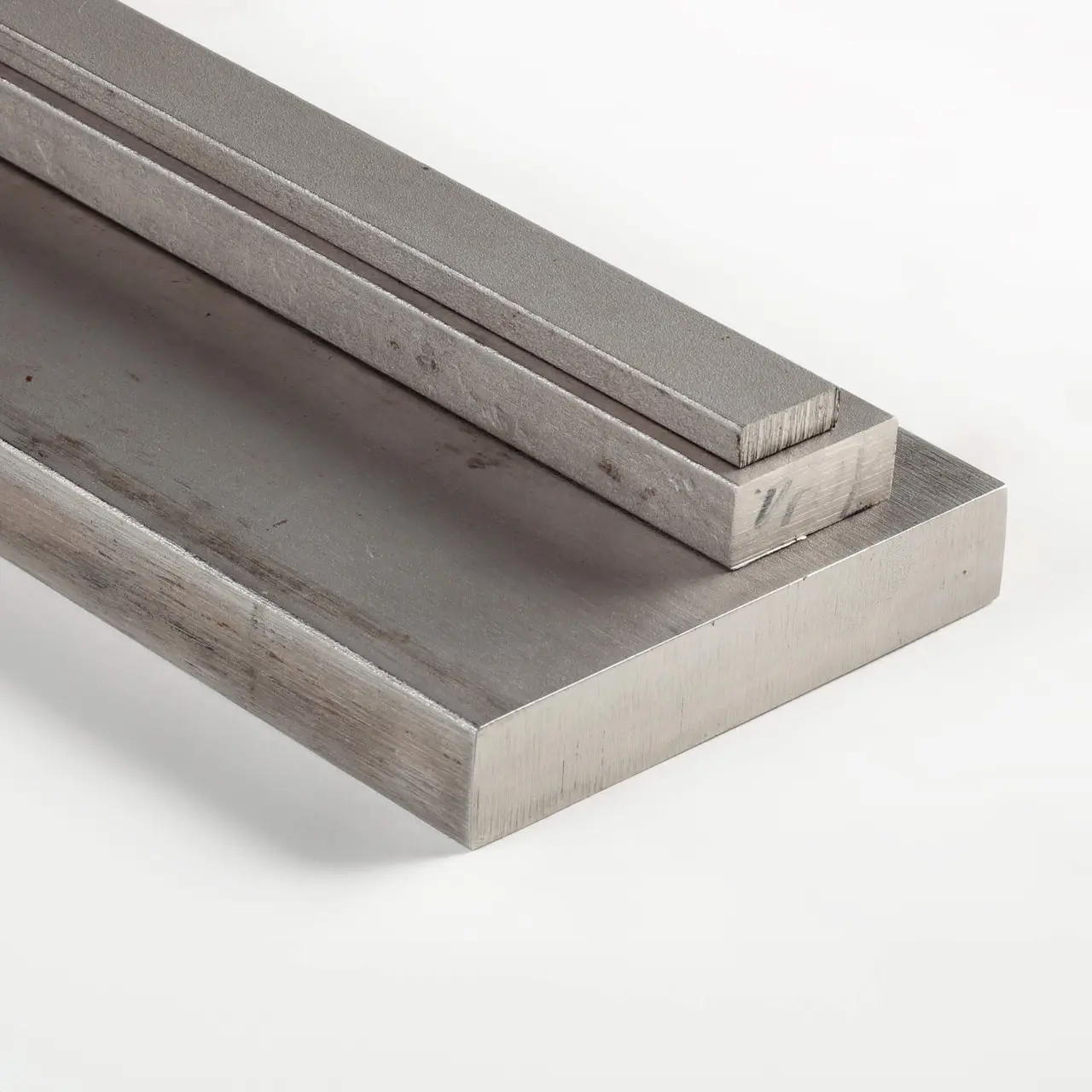

316 stainless steel flat bar
316 stainless steel flat bar is a solid stainless steel section with a rectangular cross-section. Like round bar, it is made from 316 stainless steel, a stainless steel known for its excellent corrosion resistance, particularly in chloride environments. The unique shape of flat bar gives it specific advantages in many structural and manufacturing applications.
Features
- Excellent Corrosion Resistance: 316 stainless steel flat bar contains molybdenum, which makes it more resistant to pitting and crevice corrosion than 304 stainless steel in chloride environments (such as those in the marine and chemical industries).
- High Strength and Rigidity: The flat cross-section design provides high strength and structural rigidity, enabling it to withstand high bending and shear stresses.
- Excellent Processability: 316 stainless steel flat bar is easy to cut, drill, weld, and machine, facilitating various fabrication and assembly applications.
-
Aesthetics and Practicality: Its flat surface provides aesthetic value in architectural and decorative applications while also being easy to clean and maintain.
Specifications of 316 stainless steel flat bar
| Standard |
ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311,DIN 1654-5,DIN 17440, KS D3706,GB/T 1220 |
| Material |
EN1.4307,EN1.4845,EN1.4547,EN1.4404,EN1.4919,EN1.4571,EN1.4438, EN1.4541,EN1.4878,EN1.4550,EN1.3974,EN1.4511,EN1.4006 |
| Surface | Pickled,Peeled,Black,Sand Blast,Bright etc |
| Technology | Hot Rolled,Cutting |
| Specifications | 20*3mm -100*10mm or as required |
| Tolerance | as required |
316 stainless steel flat bar sizes and weight
| Size | Weight | Size | Weight |
| (mm) | per metre (Kg) | (mm) | per metre (Kg) |
| 12 x 3 | 0.28 | 50 x 6 | 2.37 |
| 20 x 3 | 0.47 | 60 x 6 | 2.84 |
| 25 x 3 | 0.59 | 75 x 6 | 3.56 |
| 30 x 3 | 0.71 | 100 x 6 | 4.74 |
| 40 x 3 | 0.95 | 25 x 8 | 1.58 |
| 50 x 3 | 1.19 | 30 x 8 | 1.9 |
| 60 x 3 | 1.42 | 40 x 8 | 2.53 |
| 75 x 3 | 1.78 | 50 x 8 | 3.16 |
| 100 x 3 | 2.37 | 60 x 8 | 3.79 |
| 12 x 5 | 0.47 | 75 x 8 | 4.74 |
| 20 x 5 | 0.79 | 100 x 8 | 6.32 |
| 25 x 5 | 0.99 | 25 x 10 | 1.98 |
| 30 x 5 | 1.19 | 30 x 10 | 2.37 |
| 40 x 5 | 1.58 | 40 x 10 | 3.16 |
| 45 x 5 | 1.78 | 50 x 10 | 3.95 |
| 50 x 5 | 1.98 | 60 x 10 | 4.74 |
| 60 x 5 | 2.37 | 75 x 10 | 5.93 |
| 75 x 5 | 2.96 | 100 x 10 | 7.9 |
| 100 x 5 | 3.95 | 25 x 12 | 2.37 |
| 12 x 6 | 0.57 | 30 x 12 | 2.84 |
| 20 x 6 | 0.95 | 40 x 12 | 3.79 |
| 25 x 6 | 1.19 | 50 x 12 | 4.74 |
| 30 x 6 | 1.42 | 60 x 12 | 5.69 |
| 40 x 6 | 1.9 | 75 x 12 | 7.11 |
| 45 x 6 | 2.13 | 100 x 12 | 9.48 |
